DPA-Switch

16~75VDC 입력 및 최대 100W 전력의 DC-DC 솔루션

애플리케이션
필터 제품 숨기기
필터 숨기기
Filter Products
1 - 10 개 제품 총 10 개 전시
Product Parts Table
제품
데이터 시트
RDK 사용 가능
토폴로지
출력 전력 (최대) - 폐쇄 형, 범용
항복 전압
IC 패키지
자동 재시작 및 과전압 응답
입력 전압 (최소)
입력 전압 (최대)
스위칭 주파수 (최소)
스위칭 주파수 (최대)
제어 기능
보호 기능
과열 반응
장착 유형
상품 유형
작동 온도 (최대)
작동 온도 (최소)
제어 체계
내부 스위치
자동 재시작 임계 값
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 18.0 W
Breakdown Voltage 220 V
IC Package SMD-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 18.0 W
Breakdown Voltage 220 V
IC Package DIP-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 18.0 W
Breakdown Voltage 220 V
IC Package TO-263-7C
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 35.0 W
Breakdown Voltage 220 V
IC Package SMD-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 35.0 W
Breakdown Voltage 220 V
IC Package DIP-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 35.0 W
Breakdown Voltage 220 V
IC Package TO-263-7C
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 70.0 W
Breakdown Voltage 220 V
IC Package SMD-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 70.0 W
Breakdown Voltage 220 V
IC Package DIP-8
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Flyback, Forward
Output Power (Max) - Enclosed, Univ 70.0 W
Breakdown Voltage 220 V
IC Package TO-263-7C
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8
RDK Available
Topology Forward
Output Power (Max) - Enclosed, Univ 100.0 W
Breakdown Voltage 220 V
IC Package TO-263-7C
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Input (Min) 16 V
Voltage - Input (Max) 75 V
Switching Frequency (min) 300 kHz
Switching Frequency (max) 400 kHz
Control Features Synchronous Rectification, Programmable Switching Frequency, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Input Overvoltage, Input Undervoltage, Output Open Loop, Output Overload, Overtemperature, Remote Shutdown
Over-Temperature Response Auto-restart
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart Threshold 5.8

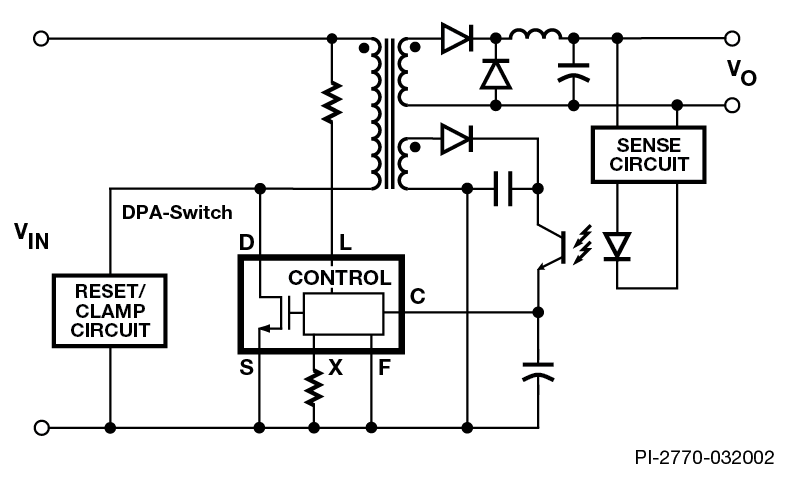

제품 상세 정보

설명:

  • 220V 급고주파 MOSFET과 모든 제어 및 각종 보호 회로를 통합한 모노리식 IC
  • 넓은 DC 입력 전압 범위(16VDC~75VDC)
  • 손실없는 집적된 current limit
  • 오토-리스타트 기능 내장
  • 전압 모드로 5kHz 이상의 루프 대역폭을 제공하면서 75%의 듀티 사이클 실현
  • 입력 저전압/고전압 셧다운 보호(ETSI 표준 충족)
  • 핀 선택형 300/400kHz
  • 저렴한 동기 정류 방식 가능

애플리케이션

  • 24V/48V DPA(분산형 전원 디자인)
  • DC-DC 컨버터 모듈 "브릭"
  • PoE PD(PoE 애플리케이션 지원 페이지)
  • 서버, 라우터 및 네트워크 라인 카드
  • 통신 중앙 관제 장비
  • VoIP 및 디지털 기능 전화
  • 온도 및 산업용 제어
