2SP0115T

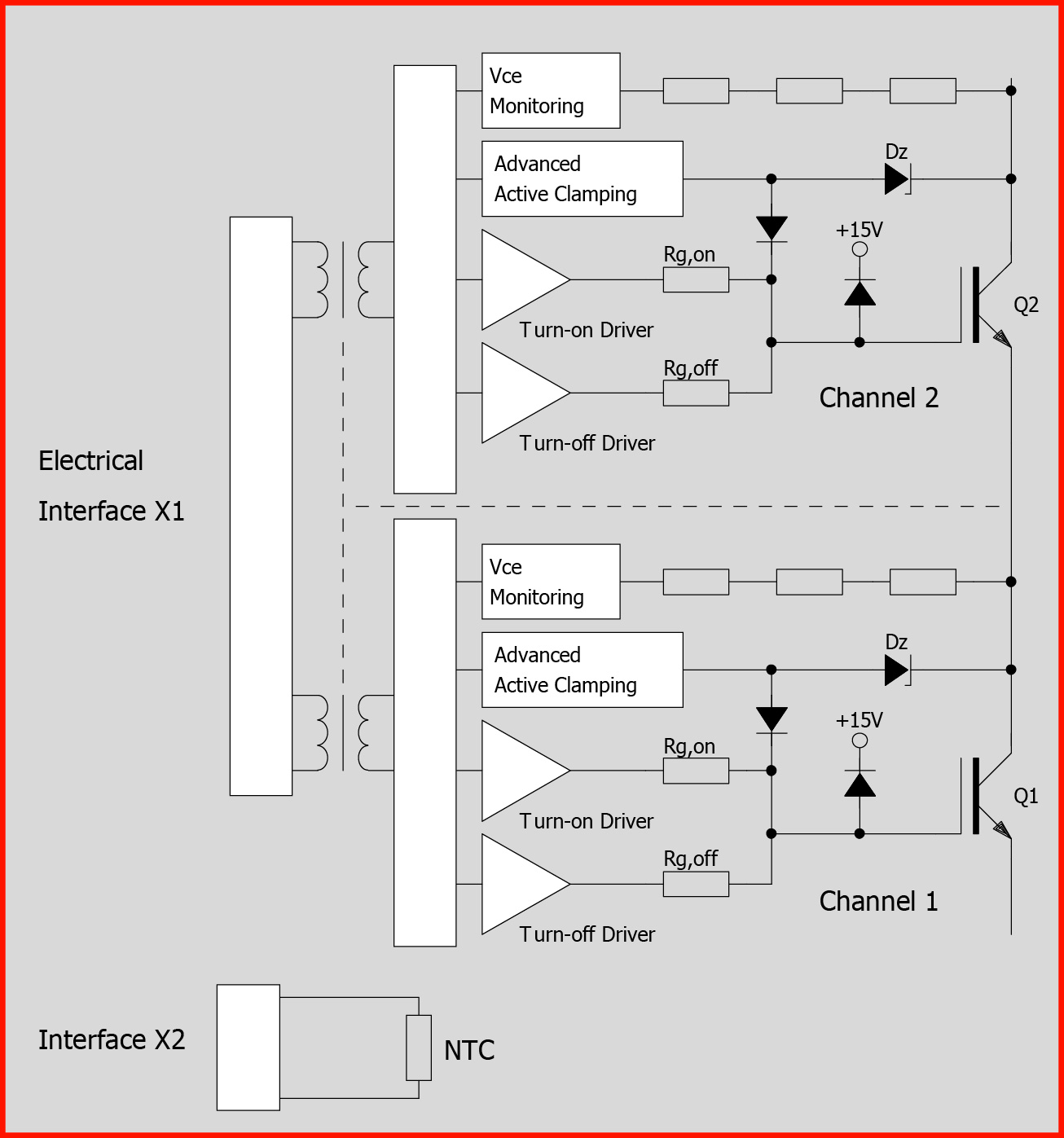

用于17mm IGBT模块的双通道SCALE-2即插即用型驱动器,功能齐全,支持驱动器直接并联

筛选器 筛选产品
显示1 - 50项产品, 共151项
Product Parts
产品
数据手册
IGBT电压等级
最大开关频率
输出功率/通道-最大
Gate Peak Current (Max)
逻辑输入电压
支持的模块
支持的模块
IGBT制造商
三防漆?
通道数
保护功能
技术
接口类型
支持的拓扑
电源电压 (典型)
栅极导通电压
栅极关断电压
隔离类型
Isolation Technology
時間 - 輸出下降
時間 - 輸出上升
驱动模式
IGBT的连接类型
Data Sheet 查看PDF
IGBT Voltage Class 600 V
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 24.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI225VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 15.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI300VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 14.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI300VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 22.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450U4N-170-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 11.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 9.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 10.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI550VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 9.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI600VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 9.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI800XNE120-50
IGBT Manufacturer Fuji
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 32.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0225R170300
IGBT Manufacturer ABB
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 26.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0300R170300
IGBT Manufacturer ABB
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 18.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0450R170300
IGBT Manufacturer ABB
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 50.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM200DX-24S
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 35.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM300DX-24S
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 15.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM300DX-24T
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 25.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM450DX-24S
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 9.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM450DX-24T
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 13.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM450DX-24T1
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 7.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM600DX-24T
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 7.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) CM800DX-24T1, CM800DXP-24T1
IGBT Manufacturer Mitsubishi/Powerex
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 40.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF150R12ME3G
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 36.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF225R12ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 28.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF225R17ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 22.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF300R12ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 26.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF300R12ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 18.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF300R17ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 21.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF300R17ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 600 V
Max Switching Frequency 13.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF450R06ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 15.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF450R12ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 19.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF450R12ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 12.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF450R17ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 14.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF450R17ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 600 V
Max Switching Frequency 10.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF600R06ME3
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 14.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF600R12ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 10.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF600R17ME4
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 4.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) FF900R12ME7_B11
IGBT Manufacturer Infineon
Conformal Coated? No
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 24.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI225VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 15.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI300VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 14.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI300VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 22.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450U4N-170-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 11.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 9.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI450VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 10.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI550VN-170-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1200 V
Max Switching Frequency 9.5 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 2MBI600VN-120-50
IGBT Manufacturer Fuji
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 32.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0225R170300
IGBT Manufacturer ABB
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 26.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0300R170300
IGBT Manufacturer ABB
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
Data Sheet 查看PDF
IGBT Voltage Class 1700 V
Max Switching Frequency 18.0 kHz
Power - Output/Channel (Max) 1.2 W
Gate Peak Current (Max) +15 A
Logic Input Voltage 5
Supported Module Type IGBT
Supported Module(s) 5SNG0450R170300
IGBT Manufacturer ABB
Conformal Coated? Yes
Number of Channels 2
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.2 V
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 10 ns
Time - Output Rise 5 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct

2SP0115T是一款超紧凑的驱动器,用于17mm EconoDUAL™ IGBT模块。作为CONCEPT即插即用驱动器家族的成员,它针对电气性能以及抗干扰性进行优化以满足不同工业应用的要求。与传统解决方案相比,高度集成的SCALE-2芯片组可将元件数量减少80%,因此能够显著地提高可靠性,并降低成本。

2SP0115T是完整的双通道IGBT驱动器,具备DC/DC电源、短路保护、高级有源箝位和电源电压监控功能。用户只需将它焊接到相应的IGBT模块上,系统便可立即开始工作,无需进行额外的开发或适配。这样能够缩短设计周期,同时不会影响整个系统的效率。

这款驱动器支持多个驱动器直接并联,即使在额定功率更高的应用中,也能够实现简单的逆变器设计。可针对同封装的IGBT模块进行专门的适配。DIC20电气接口非常简单,方便易用。

驱动并联的IGBT

带有独立驱动器的17mm模块可实现任意数量的直接并联。驱动器直接并联是一种崭新的、开创性的概念,这使得IGBT并联的技术门槛大大降低,客户无需花太多时间对均流性进行调试。

电气接口DIC20

2SP0115T驱动器配有DIC20电气接口,该接口与PrimePACK™驱动器2SP0320T完全兼容。DIC20电气接口非常简单,方便易用。

该驱动器配备以下端子:

  • 电源和GND端子
  • 2 x 驱动信号输入端
  • 2 x 状态输出端(故障信号反馈)
  • 1 x 模式选择端(半桥模式/直接模式)
  • 1 x 设置阻断时间的输入端

所有输入端都有ESD防护功能,所有数字信号输入端都有施密特特性。如需更多详细信息,请查阅产品文档。

用于17mm双管IGBT模块的电气接口驱动器解决方案,支持2电平、3电平和多电平拓扑及并联应用。

  • 接口可识别3.3V...15V的逻辑电平
  • 延迟时间极短(<100ns)
  • 抖动小(±4ns)
  • +15V(稳压)/-8V门极驱动电压
  • 直接模式和半桥模式
  • 支持驱动器直接并联
  • 支持两电平和多电平拓扑
  • IGBT短路保护功能
  • 高级有源钳位功能
  • 隔离的DC/DC电源
  • 电源欠压保护功能
  • 符合EN50178安全隔离要求
  • 符合UL标准
  • 优越的EMC性能
  • 性能可靠,工作寿命长
  • 可提供原厂三防漆涂覆
  • RoHS versions available: 2SP0115T2D0-12, 2SP0115T2D0-17

相关资源
