HiperTFS-2
Combined Two-Switch Forward and Flyback Power Supply Controllers with Integrated High-Voltage MOSFETs
Applications
|
Product
|
Data Sheet
|
Output Power (Max) - Continuous, 380V
|
Output Power (Max) - Peak, 380V
|
Output Power (Max) - Flyback, Univ
|
Topology
|
Protection Features
|
Breakdown Voltage
|
Control Features
|
Auto-Restart & Overvoltage Response
|
Switching Frequency (max)
|
Voltage - Input (Min)
|
Voltage - Input (Max)
|
IC Package
|
Mounting Type
|
Product Type
|
Temperature - Operating (Max)
|
Temperature - Operating (Min)
|
Over-Temperature Response
|
Secondary Response
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
148 W
|
Output Power (Max) - Peak, 380V
187 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
190 W
|
Output Power (Max) - Peak, 380V
297 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
229 W
|
Output Power (Max) - Peak, 380V
375 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
251 W
|
Output Power (Max) - Peak, 380V
419 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
269 W
|
Output Power (Max) - Peak, 380V
466 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
298 W
|
Output Power (Max) - Peak, 380V
513 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
322 W
|
Output Power (Max) - Peak, 380V
553 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Continuous, 380V
343 W
|
Output Power (Max) - Peak, 380V
586 W
|
Output Power (Max) - Flyback, Univ
20 W
|
Topology
Flyback, 2-Switch Forward + Flyback
|
Protection Features
Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
|
Breakdown Voltage
725 V
|
Control Features
Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Switching Frequency (max)
132 kHz
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
IC Package
eSIP-16F
|
Mounting Type
Through Hole
|
Product Type
IC
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-40 °C
|
Over-Temperature Response
Hysteretic
|
Secondary Response
Auto-restart
|
Product Details
Description

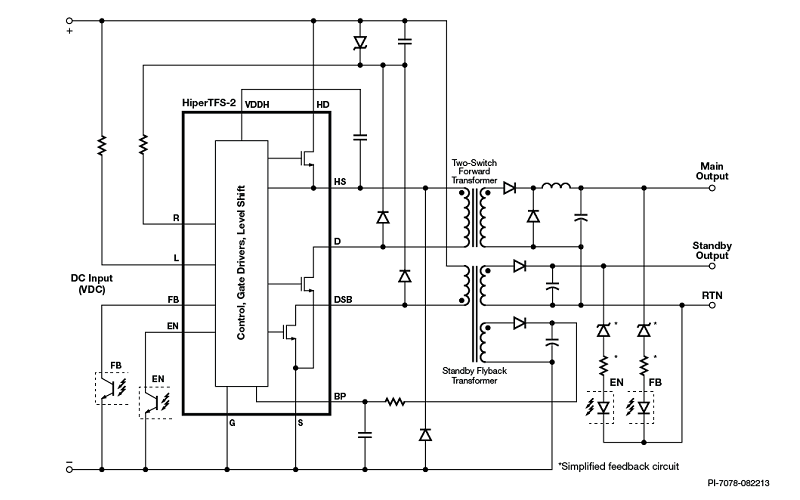

The HiperTFS-2 devices incorporate a high-power two-switch-forward converter and a mid-power flyback (standby) converter into a single, low-profile eSIP™ power package. The single chip solution provides the controllers for the two-switch-forward and flyback converters, high- and low-side drivers, all three of the high-voltage power MOSFETs, and eliminates the converter’s need for costly external pulse transformers. The device is ideal for high power applications that require both a main power converter (two-switch forward) up to 586 W peak, and a standby converter (flyback) up to 20 W. The devices operate over a wide input voltage range, and can be used following a power-factor correction stage such as HiperPFS.
New with HiperTFS-2
- Improved assembly flow – changed from 3 row package to 2 row package
- Up to 40% more peak power – easily meeting the next generation Intel CPU peak power requirement
- Self biased high-side driver – eliminating bias winding
- Main convertor now offers 66kHz/132kHz options
Product Highlights
Key Benefits
- Single chip solution for two-switch forward main and flyback standby
- High integration allows smaller form factor and higher power density designs, with reduced component count
- Incorporates control, gate drivers, and three power MOSFETs
- Level shift technology eliminates need for pulse transformer
- Protection features include: UV, OV, OTP, OVP, standby OPC, SCP, and ILIMIT
- Transformer reset control, prevents saturation under all conditions
- Main duty cycle operation above 50% for reduced rms currents and lower output diode voltage rating
- Less than 10% variation in standby overload power over input voltage range
Applications
- PC (80 PLUS Bronze and 80 PLUS Silver)
- Printer
- LCD TV
- Video game consoles
- High power adaptors
- Industrial & appliance
