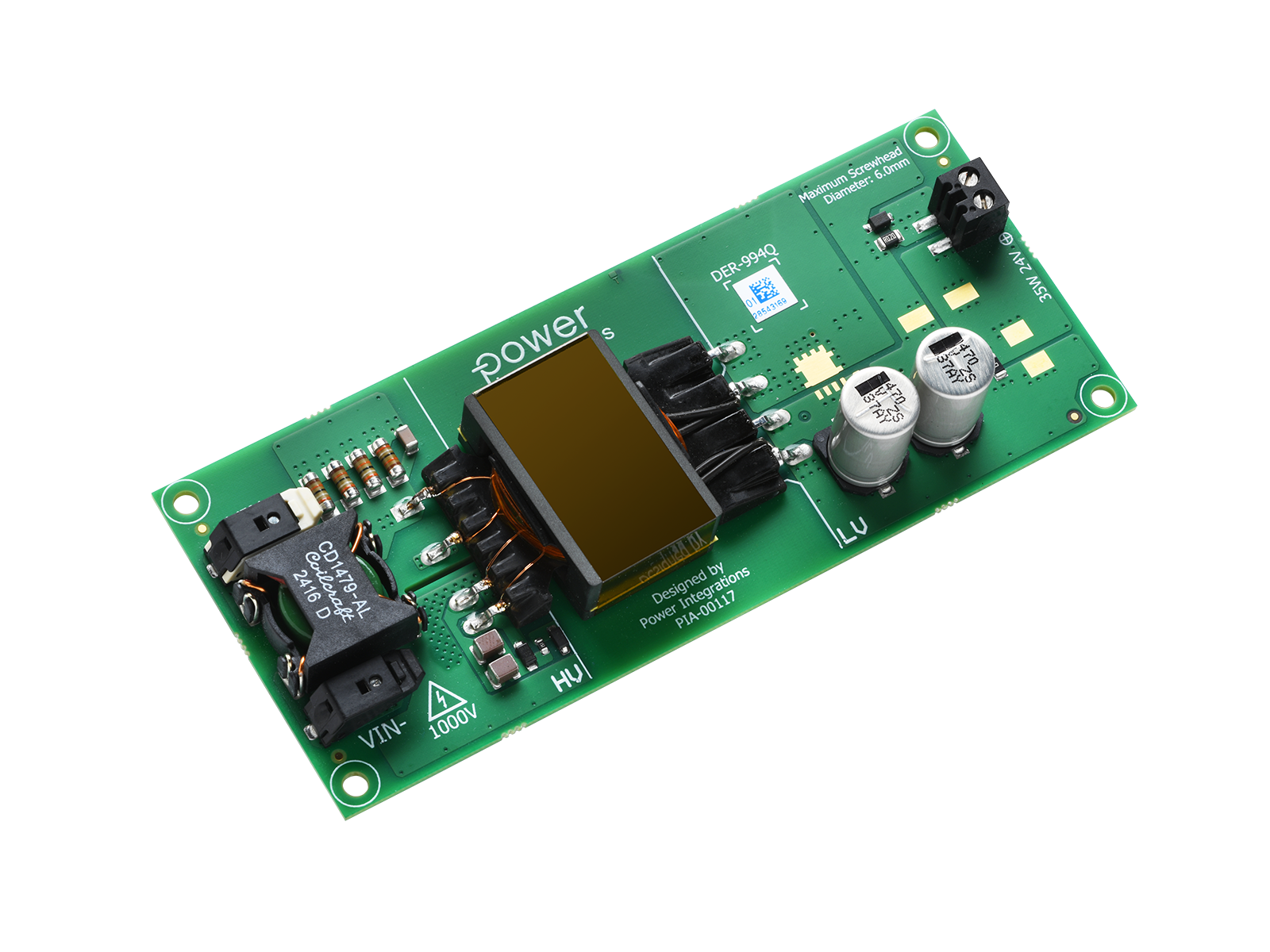

RDK-994Q with INN3947FQ

RDK-994Q - 35 W Ultra-Low Profile Power Supply with 200-1000 VDC Input and 24 V Output Using InnoSwitch3-AQ (1700 V Sic Switch)

35 W, 800 V Flyback Power Supply for Gate Driver and EPS Using InnoSwitch3-AQ with 1700 V SiC (INN3947FQ)

アプリケーション

Design Document

PDF をダウンロード PDF を表示

ディストリビューター
仕様
リソース

ディストリビューター
仕様
リソース

We're sorry, but we didn't find this product at any online distributors. Please check one of your local distributors

他のディストリビューターを見る

Back to Top

仕様

Associated Product Numbers INN3947FQ

Design Type Reference Design Reports (RDR)

トポロジー Flyback

Vout 1 23.99 V

Vin (min) 198

Vin (max) 1000

CV/CC CV/CC

Efficiency 85.00%

絶縁型? Yes

Number of outputs 1

出力 34.99 W

OVP? Yes

Associated Parts INN3947FQ

Gerber File RDR-994Q Gerber Files
