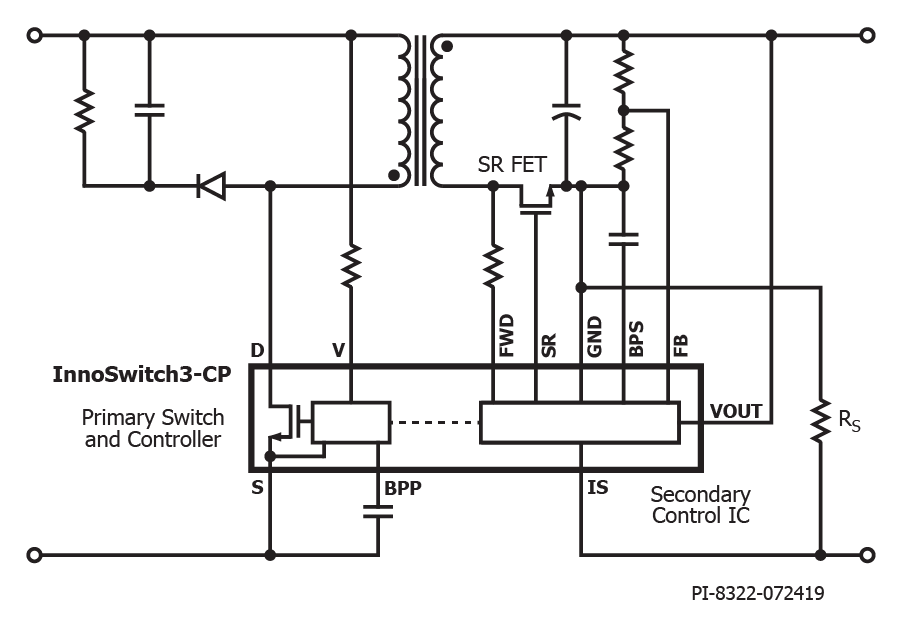

InnoSwitch3-CP

集成初级侧切换器、同步整流、FluxLink反馈和恒功率特性的离线反激式恒压/恒流准谐振开关电源IC

应用
筛选器 筛选产品
显示1 - 34项产品, 共34项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 封闭式, 230V
輸出功率 (最大) - 开架式, 230V
PowiGaN?
击穿电压
电缆压降补偿
輸出功率 (最大) - 封闭式, 通用
輸出功率 (最大) - 开架式, 通用
自动重启阈值
过热反应
输出配置
自动重启和过压反应
次级回应
控制方式
输出电压 (最小)
产品类型
输入电压 (最大)
输入电压 (最小)
运作温度 (最大)
运作温度 (最小)
保护功能
内部开关
IC封装
输出电压 (最大)
开关频率 (最大)
开关频率 (最小)
拓扑结构
MSL等级
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CP
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3

InnoSwitch3-CP系列IC可极大简化低压大电流电源的开发和制造,尤其是那些采用紧凑外壳或需要满足高效率要求的电源。InnoSwitch的架构极具革新性,因为该器件同时将初级和次级控制器以及检测元件和符合安全标准的反馈机制集成到了单个IC中。

InnoSwitch3-CP 系列装置整合了多种保护功能,包括线电压过压和欠压保护、输出过压和过电流限制,以及过温关机。此系列装置支援常见的锁定与自动重新启动机制组合,可满足多种应用的要求,如快速充电和 USB PD 设计。此装置分为具有和不具有缆线压降补偿两款。

产品特色

高度集成,外形紧凑

  • 集成了多模式准谐振(QR)/CCM反激式控制器、高压开关、次级侧检测和同步整流驱动器
  • 反馈方式采用内部集成的FluxLink技术,且满足HIPOT(高压绝缘)要求
  • 轻易连接负载定向和快速充电协议IC
  • 恒功率(CP)特性通过连续调整输出电流及电压缩短充电时间
  • 优异的CV/CC/CP精度,不受变压器设计或外围元件的影响
  • 使用外部IS电阻,可设定恒流点
  • 即时快速的动态响应特性可保证CV在±5%的范围内,0%-100%-0%负载阶跃

PowiGaN 技术

EcoSmart – 高效节能

  • 在整个负载范围内效率高达95%
  • 空载功率小于30 mW,包括线路感应
  • 轻松满足全球所有能效标准
  • 低散热

先进的保护/安全特性

  • 次级FET/二极管短路保护
  • SR FET栅极驱动开路检测
  • 快速的输入欠压/过压保护

更多可选特性

  • 多项输出线电压降补偿设置
  • 可变的输出恒流特性
  • 自动重启动或锁存故障响应输出过压/欠压保护
  • 多输出欠压保护故障阈值
  • 锁存或迟滞初级侧过温保护

完全符合各项安规要求

  • 加强绝缘
  • 绝缘强度>4000 VAC
  • 产品100%进行HIPOT合规性测试
  • 通过UL1577和TUV (EN60950, EN62368)安全认证
  • 可使设计达到整套EN61000-4测试标准的A级性能要求,包括EN61000-4-2、4-3 (30 V/m)、4-4、4-5、4-6、4-8 (100 A/m)及4-9 (1000 A/m)

相关资源
